Building an MCP server for your FastAPI API with FastMCP

Because Model Context Protocol (MCP) servers enable communication with APIs, they allow a range of possible integrations, such as placing orders using Claude or helping developers understand your API using Cursor AI.

But let’s be honest. Writing an MCP server from scratch with API integrations while you already have your controllers in place or an OpenAPI document is tedious. With FastMCP and Speakeasy, you can generate an MCP server directly from a ready-made API, removing the need to rewrite logic or duplicate schemas, making your backend instantly agent-ready.

This guide will compare two approaches to building an MCP server for a FastAPI  API using different tools. The first approach uses FastMCP , while the second uses Speakeasy . The guide will focus on comparing the maintenance, code quality, and usage of these two tools.

Requirements

Let’s build an MCP server using the APItizing Burgers example app .

Clone the project with the following command:

To make the setup easier, use the uv environment manager. You can use any Python environment creation tool.

Then, install the required dependencies for the project. Because the apitizing-burger project is already set up with FastAPI, you can jump to installing the FastAPI package and its dependencies.

Run the API using the following command:

It’s a good idea to have Claude  installed on your device to test the MCP servers. Then, you can start integrating FastMCP and Speakeasy in the project to build an MCP server.

Let’s begin by integrating FastMCP.

Building an MCP server with FastAPI and FastMCP

FastMCP is a Python package that provides a high-level implementation of the MCP Python software development kit (SDK). By using this package, you can quickly build an MCP server without worrying about the low-level implementation of component lifecycle management, including tools, resources, or prompts.

Interestingly, the FastMCP package provides an integration with FastAPI  that transforms your controllers into MCP tools. Here’s how to implement it:

1. Install FastMCP

First, install the FastMCP  package in the project.

2. Create the MCP server file

Create a file in the app directory called mcp_server.py. This file will contain the code for the MCP server.

3. Configure FastMCP with FastAPI

Inside the mcp_server.py file, add the below code. This is how you register your FastAPI app with FastMCP using a single line. From there, FastMCP inspects the app, identifies the declared controllers in app/main.py, and converts each route into an MCP tool without requiring any additional configuration.

4. Install the MCP server in the Claude desktop app

There’s no need to write the configuration yourself. Instead, go into the app directory and run the fastmcp install command to handle the installation:

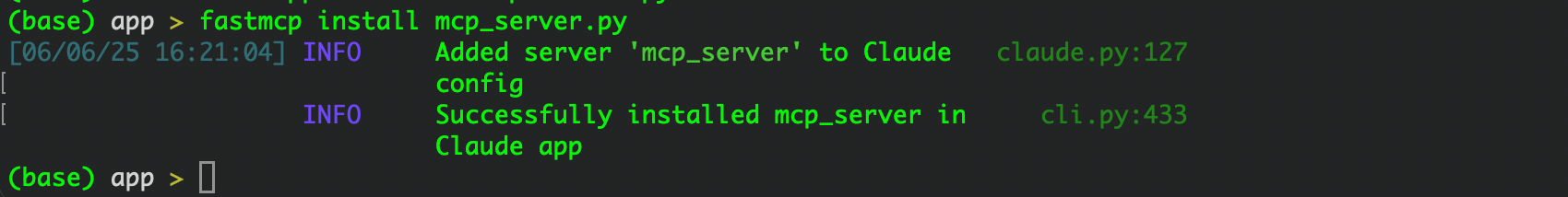

You’ll get a similar output, confirming that the MCP server is installed in Claude.

The configuration won’t work just yet. Let’s have a look at the claude-desktop-config.json file.

The --with option lets you specify the dependencies to use when running the file. However, fastmcp is not the only dependency, as you are also working with fastapi. You may encounter issues with the Python path, which can result in import errors. Modify the configuration by adding the fastapi[all] dependency and an environment variable to set the Python path, ensuring Claude can run the project without issues.

The integration of FastAPI and FastMCP is now complete, and you can test the MCP server in the Claude desktop app.

Test the integration

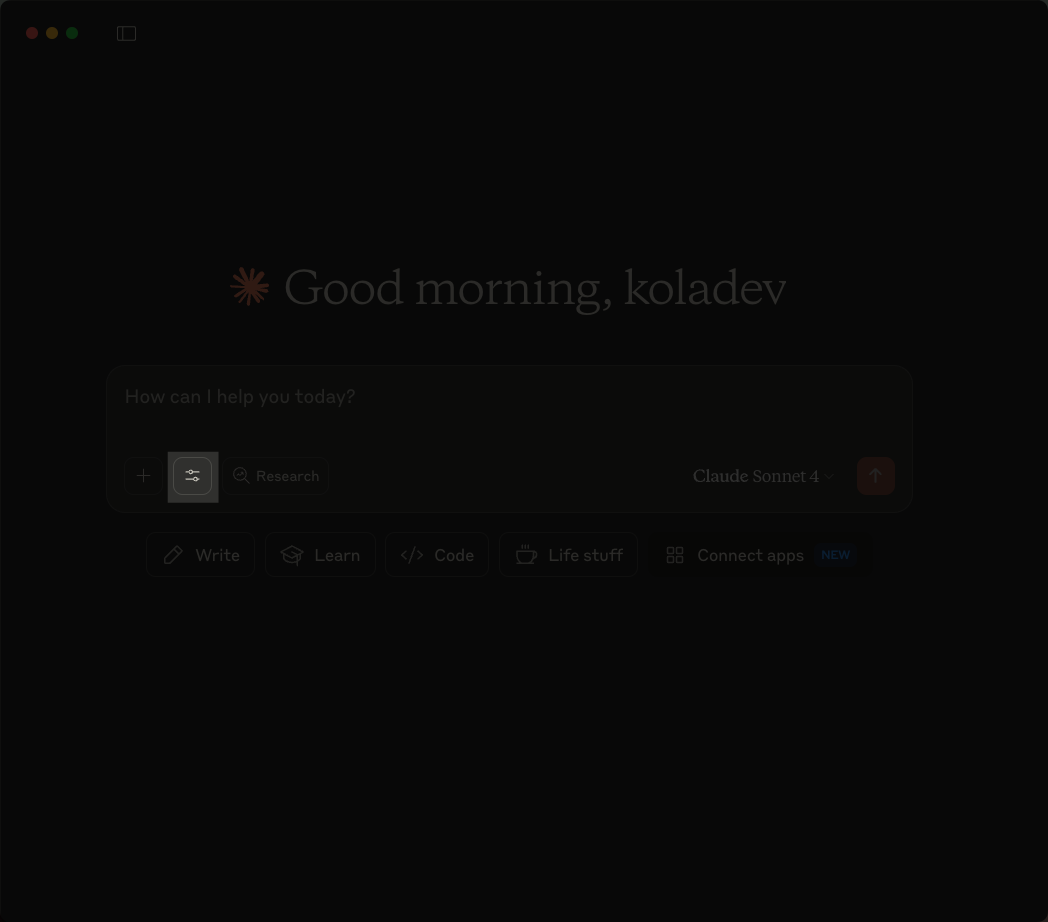

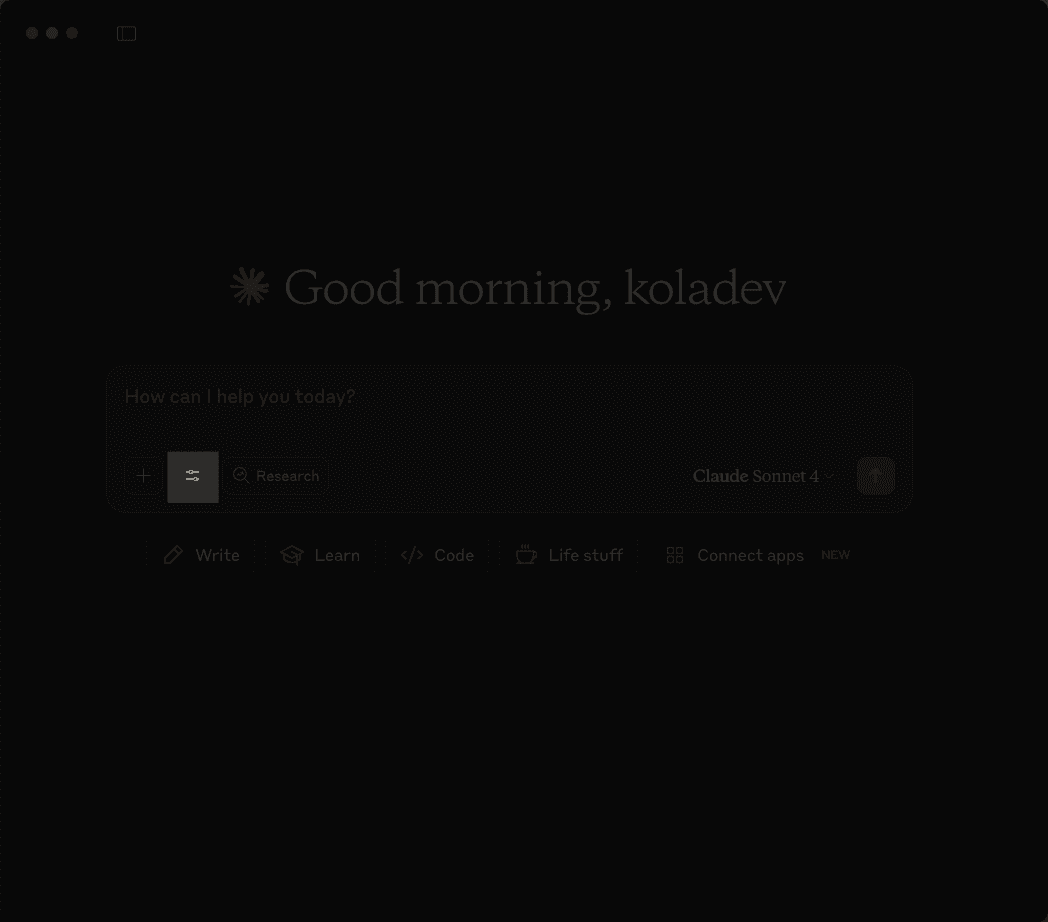

Open your Claude desktop app and click on the Search and tools button.

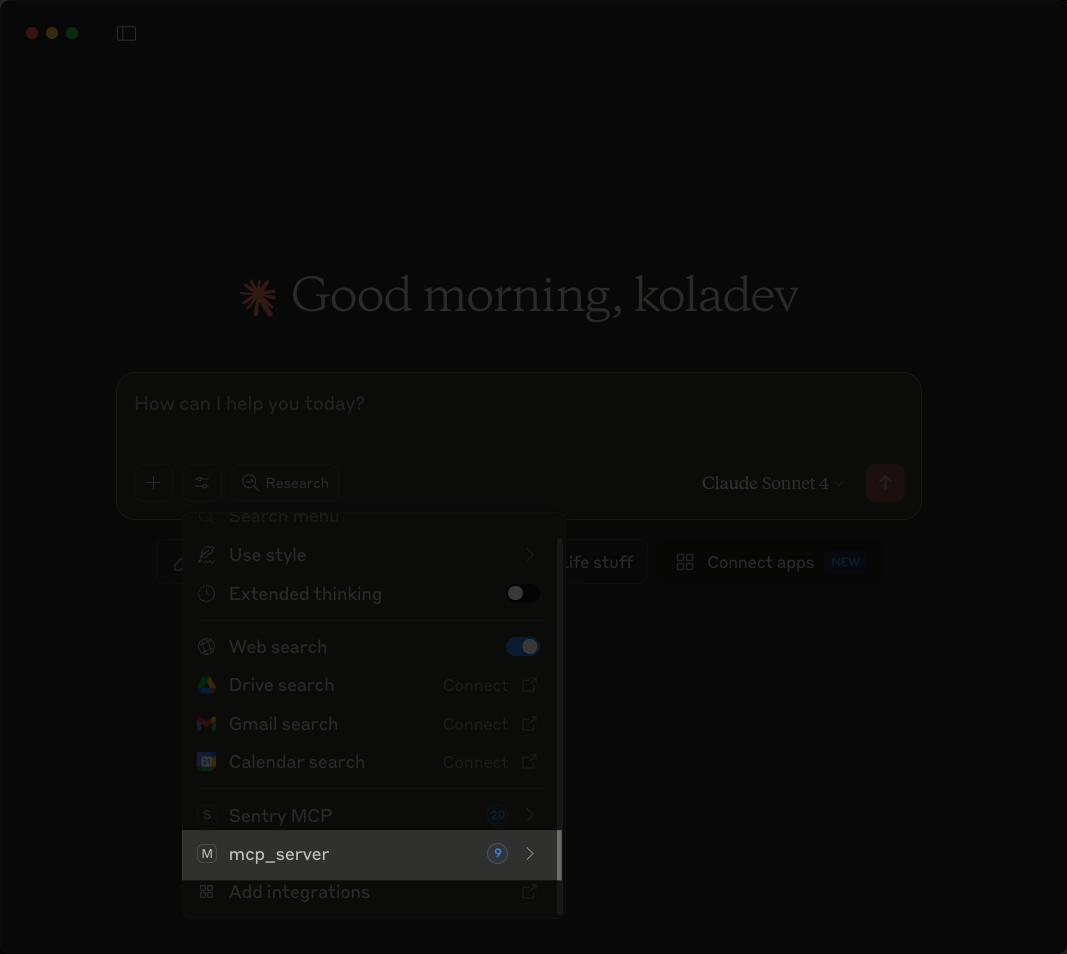

Clicking on the Search and tools button will display the MCP servers installed. Your MCP server’s name will be mcp_server.

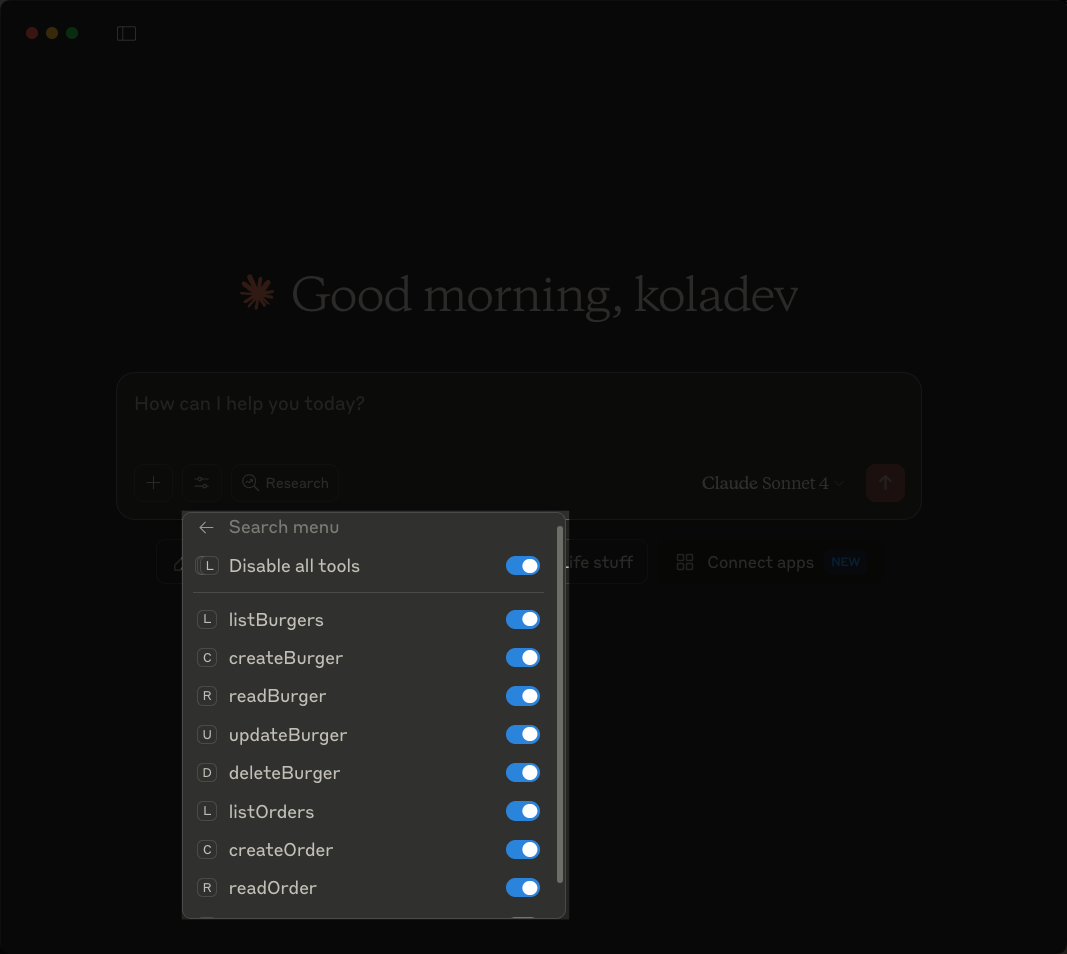

Click on the server to see the tools you added.

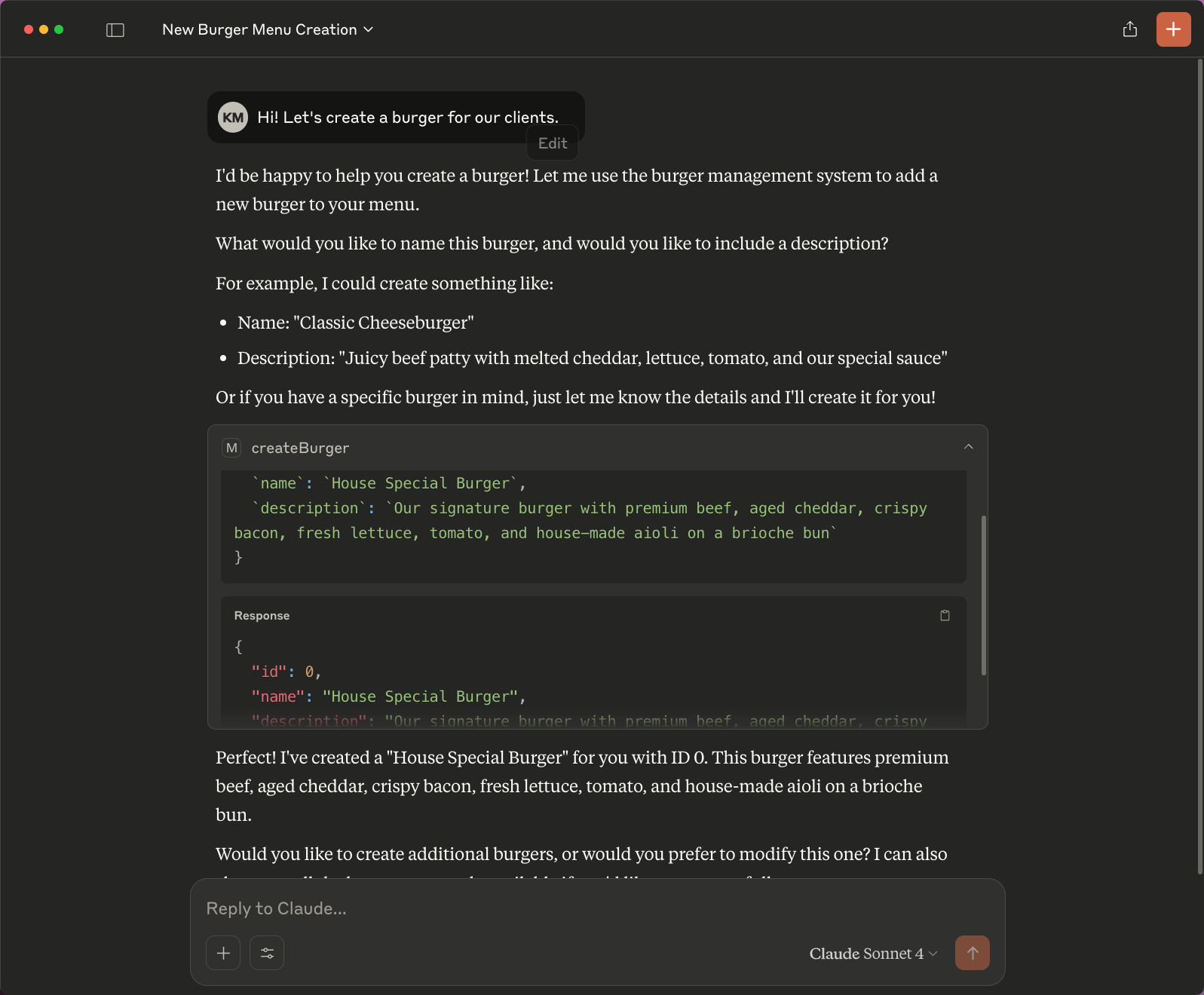

You can then ask Claude to create a burger in the chat. In the screenshot below, you can see that Claude made a tool call to create a burger from our API.

You have now created an MCP server with FastAPI and FastMCP.

More configuration with FastMCP

FastMCP gives you some flexibility in how tools display. You can configure things like the server name, timeout values, custom tool names, and route maps to control which endpoints are included or excluded.

Here’s an example that renames the server, overrides a tool name, and excludes the route for deleting a burger:

Considerations for FastMCP in FastAPI

FastMCP avoids code duplication by reusing your existing FastAPI endpoints. Typing and schema definitions are preserved, including inheritance and Pydantic validations. This preservation also extends to dependencies, middleware, and authentication, all of which carry over into the MCP layer.

FastMCP behaves like a black box. You get speed and simplicity, but not much visibility into how tools, prompts, or resources are constructed. In contrast, when you use the MCP Python SDK directly – even with FastMCP – you build things manually but retain full control. You can interact with the component lifecycle, adjust behavior, and trace execution more easily.

Without visibility, debugging tool behavior can be difficult to manage when something breaks or doesn’t work as expected.

Building an MCP server with FastAPI and Speakeasy

Speakeasy  is a tool and service that helps you generate SDKs from OpenAPI documents in a range of languages. Speakeasy supports generating MCP servers  alongside your SDK code (currently only for TypeScript SDKs, with support for additional languages planned). All you need is an OpenAPI document and a Speakeasy account .

Let’s build an MCP server with FastAPI and Speakeasy.

1. Install the Speakeasy CLI

Install Speakeasy  on your device. If you are using a Mac or Linux, use the following commands:

If you are using a Windows device, use the following commands:

2. Upload the OpenAPI document

The APItizing Burgers project already has OpenAPI document files like openapi.yaml and openapi.json, and there’s no need to perform any configuration for them.

To start the process, run the following command from the project’s root directory:

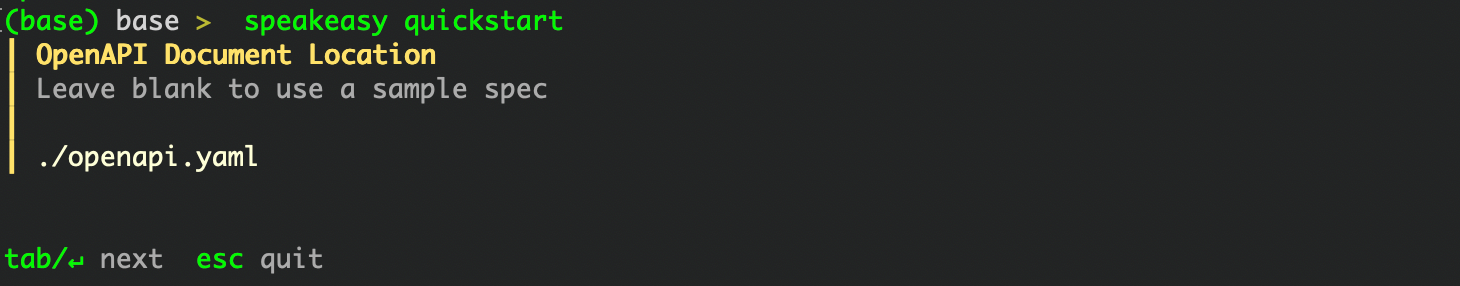

This command will prompt for authentication. After authenticating successfully, enter the following path to the OpenAPI document: ./openapi.yaml.

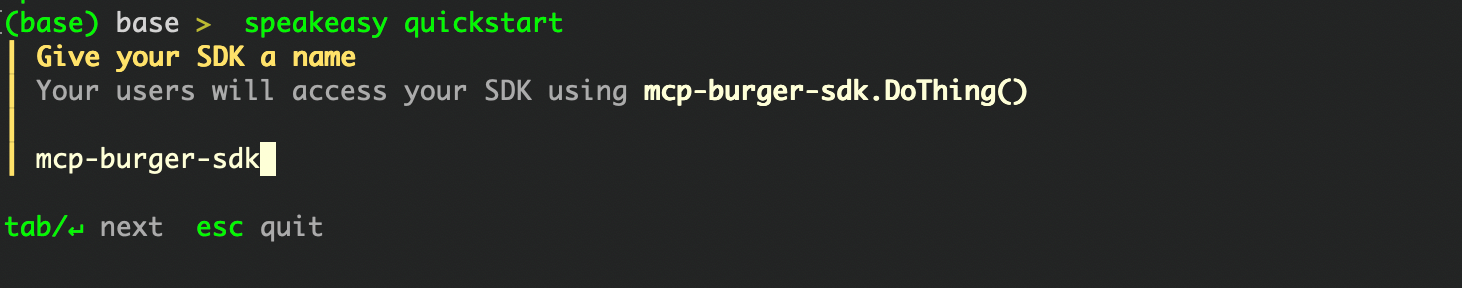

3. Name the SDK

Name the SDK mcp-burger-sdk.

4. Select the output

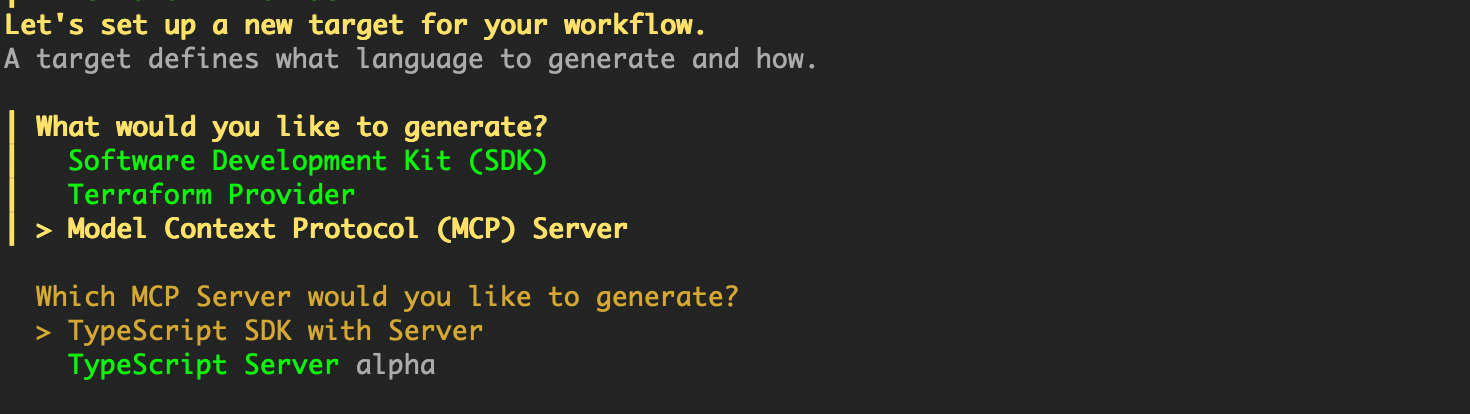

Speakeasy will ask what you want to generate. Choose Model Context Protocol (MCP) Server, and then the sub-option TypeScript SDK with Server.

The Speakeasy command-line interface (CLI) will then ask for a directory to generate the SDK and a name for the npm package. Press Enter to use the current directory and the default package name, or modify them if needed.

At this stage, Speakeasy will generate a TypeScript SDK in the mcp-burger-sdk-typescript directory. The MCP server code will be located at mcp-burger-sdk-typescript/src/mcp-server. A built version is also available at mcp-burger-sdk-typescript/bin/mcp-server.js, which is the file you’ll reference in your Claude configuration.

5. Install the MCP Server in the Claude desktop app

With the MCP server already built, the next step is to configure the MCP server in the claude-desktop-config.json file.

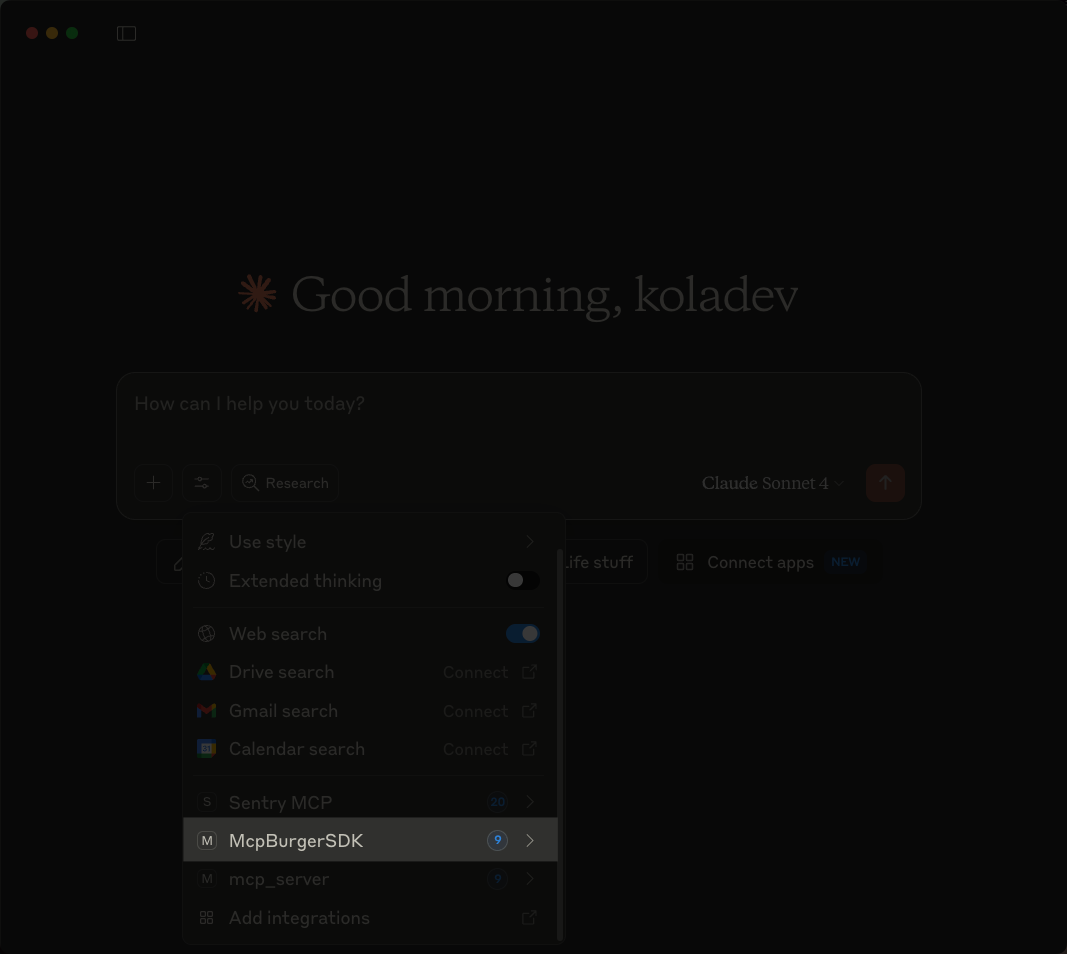

Once the installation is complete, reload the Claude desktop app. You should see the server and its available tools.

You now have a working MCP server generated with Speakeasy.

More configuration with Speakeasy

Speakeasy allows you to customize  your server, whether you’d like to hide certain tools and set specific scopes, but the customization starts with the OpenAPI document. To disable the generation of a tool for an operation, use the x-speakeasy-mcp extension.

In the code configuration above:

• disabled specifies when a tool should be ignored.
• name is used to set the name of the MCP tool if you want to change it.
• scopes are a way of tagging tools, which is helpful when you want to run the MCP server for a specific set of tools.

When starting the MCP server with Speakeasy, you can specify which scopes to include with the --scope flag:

If modifying the OpenAPI document is a hassle, you can use Overlays , which provides a convenient way to apply the x-speakeasy-mcp extension without changing the original file. The code below instructs Speakeasy to generate tools for operations with the tag products and HTTP operations of types POST, HEAD, and QUERY.

Choosing between FastMCP and Speakeasy

FastMCP and Speakeasy are two solid options for building an MCP server. Both can help you ship quickly, but they serve different needs depending on how much control, visibility, and long-term structure you require.

Visibility

Speakeasy generates explicit code for the server and tools in the mcp-server directory. You can inspect how each tool is defined, see the input/output mappings, and modify behavior as needed. This helps when you want to understand or extend how the MCP layer works.

By comparison, you don’t see how tools are constructed when using FastMCP. FastMCP automatically converts your FastAPI routes into MCP tools, but the internal logic, prompt structure, and resource handling are hidden. This makes debugging harder as your server grows.

Setup

Speakeasy requires an OpenAPI document and a short CLI flow to generate the server. While the setup takes a bit more time upfront, it gives you a clean, extensible SDK with a built-in MCP server, ready to integrate with Claude, Cursor, or run as a standalone service.

An advantage of using FastMCP with FastAPI is that you can quickly get a working MCP server. FastMCP reuses your existing FastAPI app, requiring minimal configuration. If your routes are typed and documented, FastMCP can expose them as tools with almost no extra work.

Customization

With Speakeasy, customization begins in the OpenAPI document. You can change tool names, disable endpoints, apply scopes, or define overlays for external configuration. This makes it easier to create a curated toolset without touching application code.

You have limited customization in FastMCP. You can rename tools, set timeouts, or exclude routes using configuration options, but beyond that, you’re constrained by what the abstraction allows.

Maintainability

Speakeasy separates your server from your application logic. The OpenAPI document becomes the source of truth, and the MCP server is generated from that document.

With FastMCP, your MCP is very close to your FastAPI app. The MCP server depends directly on your controller structure, so changes to endpoints will be reflected in the tools. This tight coupling works in smaller projects, but it can introduce friction as the system evolves.

Distribution

With Speakeasy, you can publish the MCP server as an npm package or use it directly with npx. This allows you to distribute tools across environments or share access with other teams and your users.

You would typically run FastMCP locally inside the Claude desktop app. FastMCP works well for local tools, but it’s not built for external packaging or reuse across environments.

Final thoughts

This guide explored how to build an MCP server for a FastAPI API using FastMCP and Speakeasy. Each tool has its trade-offs, but to summarize:

• Choose FastMCP if you don’t have an OpenAPI document or don’t plan to deploy and maintain the MCP server in the long term. FastMCP is a quick way to turn your existing controllers into tools, and it handles the complexity for you. It’s especially useful if you’re just exploring the MCP ecosystem or want to get something running quickly.
• Choose Speakeasy if you already have an OpenAPI document, plan to maintain the server over time, or want to share it with others. While it requires more initial setup, it gives you more control, visibility, and customization. Speakeasy also works well for prototyping, especially when you want to build something fast while keeping a path open to production.
