Using OpenAI's Responses API with Gram-hosted MCP servers

The OpenAI Responses API  supports remote MCP servers through its MCP tool feature. This allows you to give GPT models direct access to your tools and infrastructure by connecting to Gram-hosted MCP servers.

This guide shows you how to connect the OpenAI Responses API to a Gram-hosted MCP server using an example Push Advisor API . You’ll learn how to create an MCP server from an OpenAPI document, set up the connection, configure authentication, and use natural language to query the example API.

Find the full code and OpenAPI document in the Push Advisor API repository .

Understanding OpenAI API options

OpenAI provides three main approaches for integrating with MCP servers:

• The Responses API (this guide): An API with a simple request-response pattern, ideal for basic tool calling and quick integrations.
• The Agents SDK: An advanced agent framework with sessions, handoffs, and persistent context that is perfect for complex conversational workflows.
• ChatGPT Connectors: Connectors offer direct ChatGPT integration to end users via a web UI.

If you need more advanced features like persistent conversations or complex workflows, consider the Agents SDK guide, or try ChatGPT Connectors for a web UI solution.

Prerequisites

You’ll need:

• A Gram account
• An OpenAI API key
• A Python environment set up on your machine
• Basic familiarity with making API requests

Creating a Gram MCP server

If you already have a Gram MCP server configured, you can skip to connecting the Responses API to your Gram-hosted MCP server. For an in-depth guide to how Gram works and more details on creating a Gram-hosted MCP server, check out our introduction to Gram.

Setting up a Gram project

In the Gram dashboard , click New Project to start the guided setup flow for creating a toolset and MCP server.

Enter a project name and click Submit.

Gram will then guide you through the following steps:

1. Upload the OpenAPI document

Upload the Push Advisor OpenAPI document , enter the name of your API, and click Continue.

2. Create a toolset

Give your toolset a name (for example, Push Advisor) and click Continue.

Notice that the names of the tools that will be generated from your OpenAPI document are displayed in this dialog.

3. Configure MCP

Enter a URL slug for the MCP server and click Continue.

Gram will create a new toolset from the OpenAPI document.

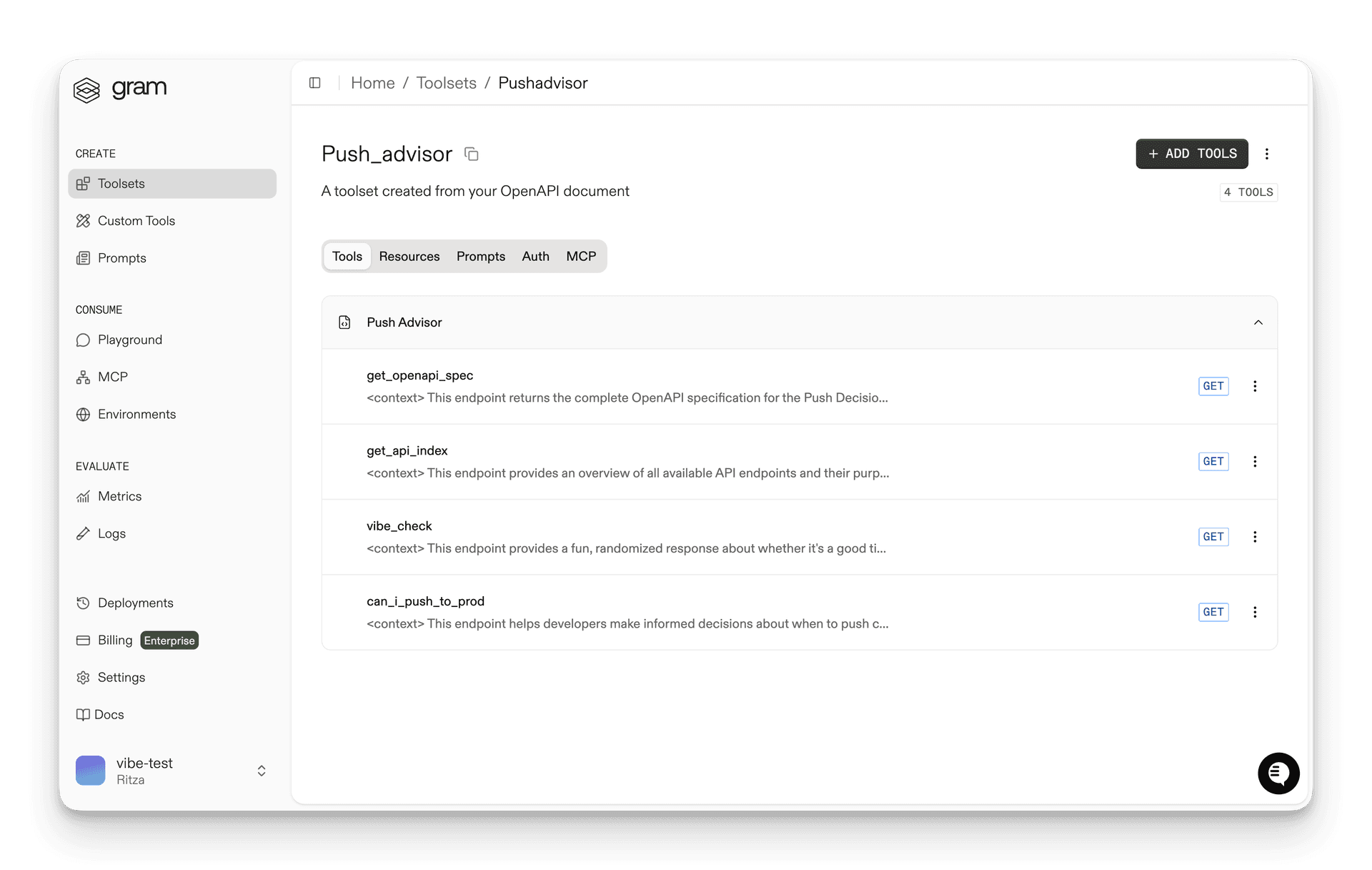

Click Toolsets in the sidebar to view the Push Advisor toolset.

Publishing an MCP server

Let’s make the toolset available as an MCP server.

Go to the MCP tab, find the Push Advisor toolset, and click the title of the server.

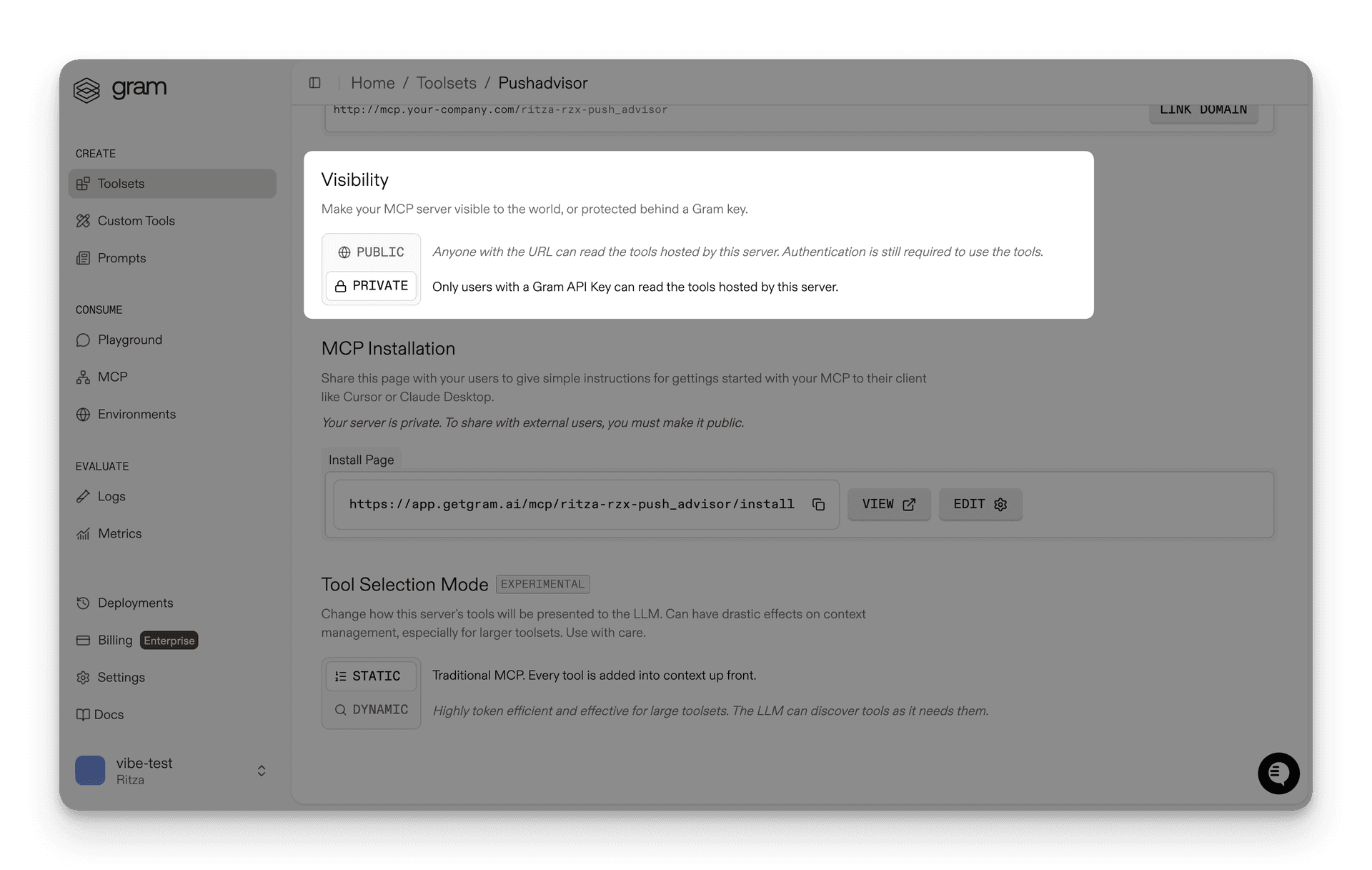

On the MCP Details page, tick the Public checkbox and click Save.

Scroll down to the MCP Config section and note your MCP server URL. For this guide, we’ll use the public server URL format:

https://app.getgram.ai/mcp/canipushtoprod

For authenticated servers, you’ll need an API key. Generate an API key in the Settings tab.

Connecting the Responses API to your Gram-hosted MCP server

The OpenAI Responses API supports MCP servers through the tools parameter. Here’s how to connect to your Gram-hosted MCP server.

Basic connection (public server)

Here’s a basic example using a public Gram MCP server. Start by setting your OpenAI API key:

Install the OpenAI Python package:

Then run the following Python script:

Authenticated connection

For authenticated Gram MCP servers, include your Gram API key in the headers.

It is safest to use environment variables to manage your API keys, so let’s set that up first:

Again, with the OpenAI Python client installed, run the following Python script to connect to your authenticated Gram MCP server:

Understanding the configuration

Here’s what each parameter in the tools array does:

• type: "mcp" specifies that this is an MCP tool.
• server_label adds a unique identifier for your MCP server.
• server_url adds your Gram-hosted MCP server URL.
• headers adds authentication headers (optional for public servers).
• require_approval controls tool call approval behavior.

Tool filtering and permissions

Using the allowed_tools parameter, you can control which tools are available for use in your MCP server while making an API call.

Filtering specific tools

If your Gram MCP server has multiple tools but you only want to expose certain ones in this particular API call, use the allowed_tools parameter:

Note how the vibe_check tool is excluded from the allowed_tools list. This means it won’t be available for use in this API call, even if it’s defined in your curated toolset and MCP server.

Managing tool approvals

For production applications, you might want to control when tools are called. The OpenAI Responses API provides several approval options:

1. Never require approval (fastest):

2. Always require approval (most secure):

3. Selective approval:

When approvals are required, the API will return an mcp_approval_request that you can respond to in a subsequent API call. See OpenAI’s documentation about approvals  for more details.

Working with responses

The OpenAI Responses API returns detailed information about MCP tool usage:

Successful tool calls

When a tool call succeeds, you’ll see an mcp_call item in the response:

Error handling

Failed tool calls will populate the error field:

Differences from Anthropic’s MCP integration

While both OpenAI and Anthropic support MCP servers, there are key differences in their approaches:

Connection method

• OpenAI connects directly to remote MCP servers via HTTP/HTTPS in the Responses API.
• Anthropic uses both direct HTTP connections (Claude API) and local MCP clients (Claude Desktop/Code).

Authentication

• OpenAI uses simple HTTP headers for authentication.
• Anthropic supports OAuth Bearer tokens and more complex authentication flows.

Tool management

• OpenAI allows tool filtering via the allowed_tools parameter.
• Anthropic allows tool configuration through the tool_configuration object.

Approval workflow

• OpenAI handles approval requests through response chaining with previous_response_id.
• Anthropic has direct tool execution with optional authentication prompts.

API structure

• OpenAI uses the tools array with type: "mcp".
• Anthropic uses the mcp_servers parameter with server configurations.

Response format

• OpenAI returns mcp_call and mcp_list_tools items.
• Anthropic returns mcp_tool_use and mcp_tool_result blocks.

Testing your integration

If you encounter issues during integration, follow these steps to troubleshoot:

Validating MCP server connectivity

Before integrating into your application, test your Gram MCP server in the Gram Playground  to ensure tools work correctly.

Using the MCP Inspector

Anthropic provides an MCP Inspector  command line tool that helps you test and debug MCP servers before integrating them with the OpenAI Responses API. You can use it to validate your Gram MCP server’s connectivity and functionality.

To test your Gram MCP server with the Inspector:

In the Transport Type field, select Streamable HTTP.

Enter your server URL in the URL field. For example:

Click Connect to establish a connection to your MCP server.

Use the Inspector to verify that your MCP server responds correctly before integrating it with your OpenAI API calls.

What’s next

You now have OpenAI’s GPT models connected to your Gram-hosted MCP server, giving them access to your custom APIs and tools.

Ready to build your own MCP server? Try Gram today  and see how easy it is to turn any API into agent-ready tools that work with both OpenAI and Anthropic models.
